Boom and Barrier Marine Accessories

Marine anchors and marine anchor kits are required marine accessories for all containment boom and turbidity curtain installation projects, regardless of the site's water conditions. The style of anchor is important, as each type is designed for specific conditions with more rigorous environmental and current conditions require additional anchoring. Proper implementation significantly reduces stress on the curtain or boom and redistributes weight throughout the floating barrier. This alleviates strain, secures the barrier's placement, and protects your investment from damage and tears.

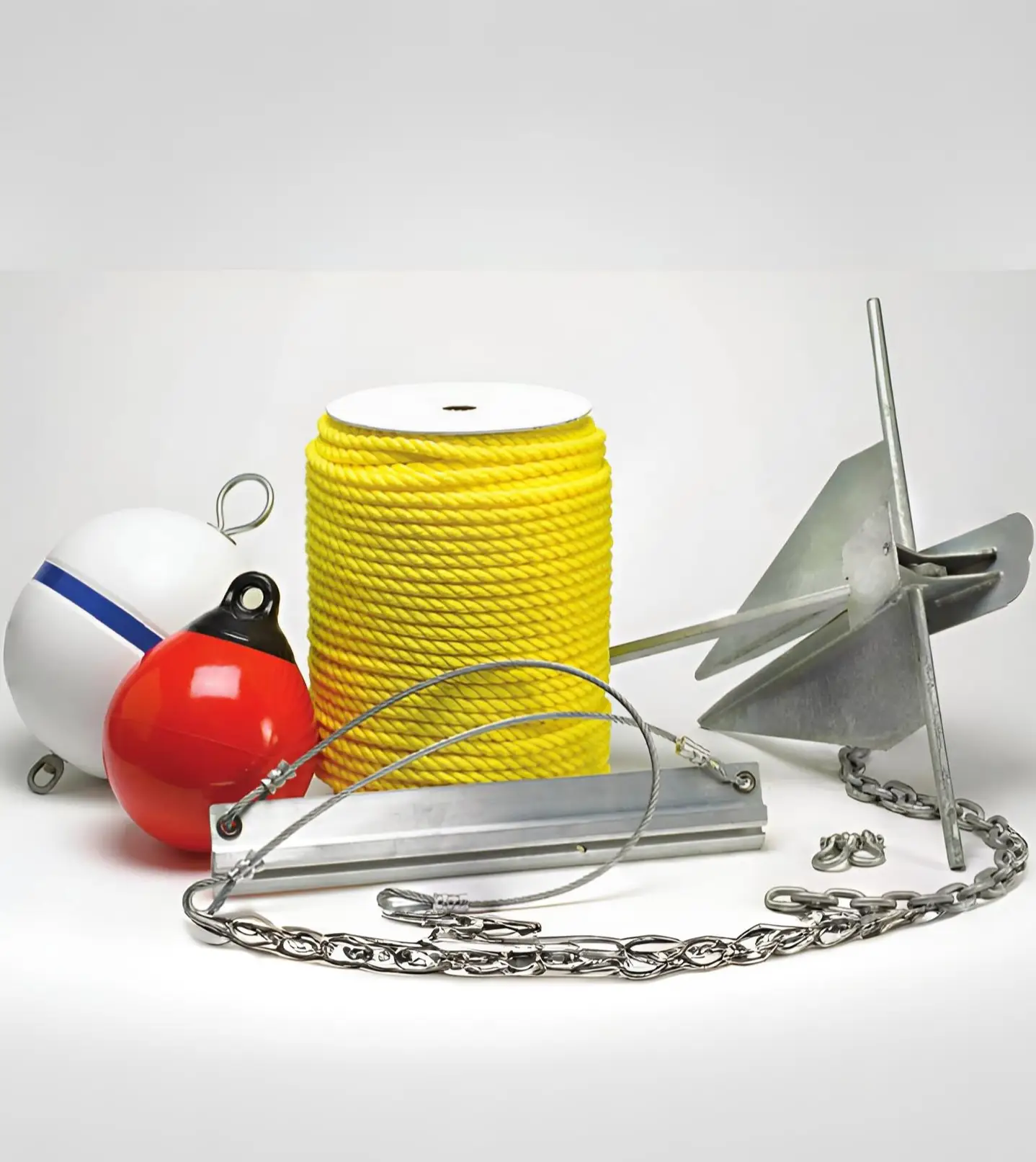

Standard anchor kits include an anchor, steel chain, polypropylene rope, and a buoy. We offer a variety of anchor models to choose from, for options to best fit different types of riverbeds and lake bottoms. Custom solutions are also available. Our standard anchor kit options include:

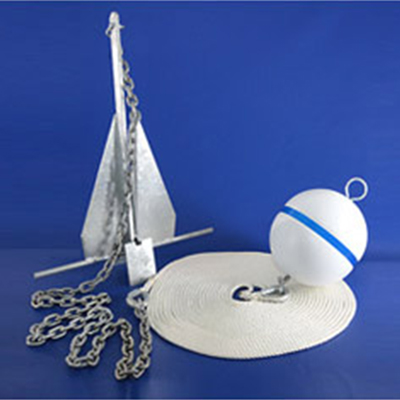

Standard Anchoring System

• Two Modified Danforth-style Anchors with 3/8" chains & shackles
  (Anchors available in 20 lbs. or 40 lbs.)
• One 12" Hard-skinned Mooring Buoy
• Two Extra Large Red Inflatable Marker Buoys

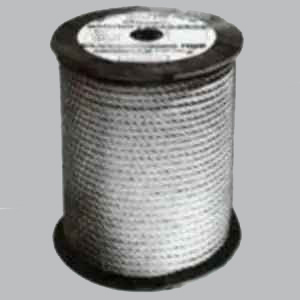

• One spool of 1/2" polypropylene rope (500 ft.)
• One spool of 1/4" polypropylene rope (500 ft.)

Snatch blocks, tie bridles and other anchoring accessories available.
Components are also available for purchase individually.

Turbidity Anchor Kit

• Heavy Duty Fluked Anchors
• 22 to 200 lbs.
• 5/16" chain
• Buoy
• 3/8 / 3/4 Nylon Rope (Thimbled)

Turbidity Barrier Anchor Kit

• Danforth-Style Anchors with 5/16" Chain & Shackles
  (Anchors Available in 18 lbs. or 25 lbs.)
• 1/2" Poly Anchor Line
• 3/8" Poly Retrieval Buoy
• 1/2" Poly Bridle Line
• Thimble Rope

Tow bridles are used during boom and turbidity curtain installation. They attach the floating barrier to the towboat, redistributing the pulled weight load to more than one point. Tow bridles prevent damage and stress on the barrier during the deployment process.

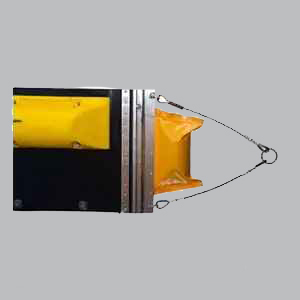

Tow Bridle

• Handles And Joins Containment Booms
• Available With Or Without Floats
• Helps Reduce Damage To Boom
• Durable And Secure Anchor Point
• Custom Sizes To Fit Your Boom

Standard Tow/Tie Off Bridle

• Full Height To Match Containment Boom Coupler
• 6" Rope Lead
• Available In Universal Slide Or Quick Latch/Z Coupler Extrusion

Standard Tow Bridle

• 8"-10" To Match Containment Boom Coupler
• Double Pull With 5/16" Cable
• Mini Boom Tow Bridles Available

Floating marker lights increase the visibility of curtain or boom while deployed in the water. Every marker light includes a light, pole, and buoy, allowing it to float next to the barrier. These marker lights ensure the safe navigation of boats and ships in harbors and marinas. Our floating marker lights also comply with most demarcation regulations on the local and state level.

Floating Marker Light

• Self-Righting
• 6 Volt Battery
• ABS Body
• Net Weight 55 Lbs.
• Solid-State Electronic Circuitry Turns Light On At Dusk
• White With Three Inch Reflective Bands
• 100 Nights (Approx.) Battery Life
• 9" Diameter
• Polyurethane Foam Filled
• 61" Overall Height
• HGD Metal Hardware
• 360 Visibility

Buoy without light also available, as well as optional symbols.

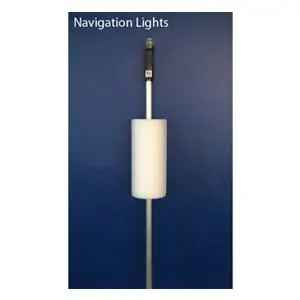

Lighted Navigation Buoy

• Ultra Stable With Underwater Counter
• Replaceable Automatic Photo Cell
• High Intensity Flashing Light Turns On At Dusk
• 3 Mile Visibility
• Amber Flashing Light Turns On At Dusk
• 18 Mo. Battery Life
• 9" Diameter
• Sealed PVC Pipe
• Styrene Filled
• 61" Overall Height
• 360 Visibility

Marker buoys are used to indicate the locations of turbidity curtain and boom anchors. Designed for commercial use, Transport Infrastructure departments often use them in city harbors, smaller public marinas, and boat docks. In addition to their primary purpose, marker buoys are also be deployed as demarcation guides and mooring signals.

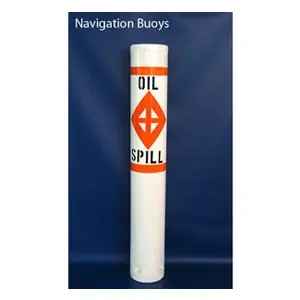

Navigation Buoy

Appropriate for use in: Restricted Area, as Information Symbols, Controlled Area, as Hazard Warning
Wording Available:

• No Wake
• Keep Out
• Closed Area
• Marina
• State Park
• Company Name
• Slow 5 MPH
• Oil Spill
• Manatee Area
• Oil Spill Damage
• Rapids
• Shoal
• Hazard Area

Marine Buoys

While these are the most popular buoys we sell, we do also have a wide selection of buoys to meet your needs.

• Hard Shell Mooring Buoy
• Inflatable Marker Buoy

Tidal Risers allow turbidity curtain to ride varying water levels – rising and lowering along the length of a vertical beam (installed by customer). Rollers glide along a beam attached to a bulkhead or other permanent structure. The primary application is for permanent boom installations, but tide risers are also used with conventional soft boom.

4 and 8 Wheel Tide Risers

Will not work with 6' I-Beam

• 4 Wheel-Rises And Falls With The Tide On Any 4' Or 6' I-Beam
  Designed For Permanent Installations
• 8 Wheel- Rises And Falls With The Tide On Any 4' I-Beam
  Designed For Permanent Installations

Double Roller Tide Riser

• Rises And Falls With The Tide On Any 4' Or 6' I-Beam
• Designed For Permanent Installations

Bulkhead Risers

Oil Bulkhead Connectors / Risers available

• Rises And Lowers Along The Length Of A Vertical, 4″ X 4″ Flange-Beam
  (Customer-Supplied And Installed)
• Bulkhead Connectors Completely Assembled
• Ready To Connect To Any Boom (Up To 6"-Dia. Flotation X 12" Skirt)
• Equipped With Quick Latch Coupler

We have a large variety of accessories from buoys to boom and baffle fabric repair kits, T-connectors to toggle pins. We have the marine accessories to meet your needs and help save money, time, and reduce the environmental impact at your containment sites.
