Skid Sprayer for Sale – 500 Gallon Elliptical Water Skid

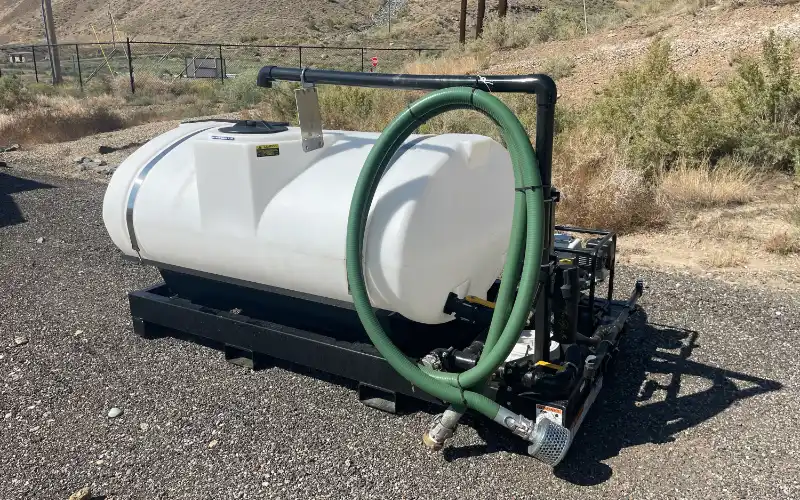

Elliptical skid sprayer mounted on heavy-duty frame
Skid sprayer main view Skid sprayer main view Skid sprayer main view Skid sprayer main view

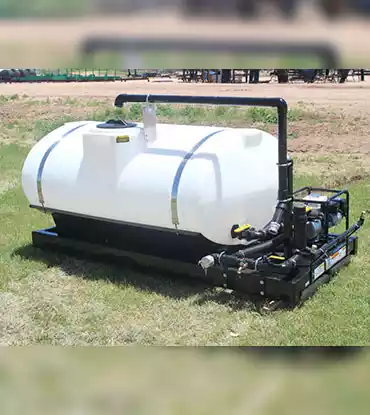

500 Gallon Elliptical Water Skid Sprayer for 1-Ton Trucks

Overview

Our elliptical skid sprayer for sale is a rugged, heavy-duty skid mounted water sprayer built for dust control, fire protection, livestock watering and more. Each sprayer skid is available in a 500 gallon fully drainable elliptical poly tank, powered by a 4-HP Honda engine and 2" skid sprayer pump with a galvanized spray bar and two nozzles. Whether you're hauling water to a remote construction site or watering landscaping, this truck bed skid sprayer quickly loads into your 1-ton or larger pickup truck.


Designed for demanding off-the-grid locations, this skid mounted sprayer is sometimes called a skid steer sprayer or water skid sprayer. The heavy-duty 6" channel iron skid frame and reliable pump-and-engine package help you move water for dust control sprayer work, fire support, or livestock watering with confidence. Numerous accessories and add-ons, including hose reels and fire hose kits, allow you to configure the pickup skid sprayer for your specific job.

Specs & Benefits

Elliptical Skid Sprayer Specs Elliptical Skid Sprayer Benefits
  • Capacity: 500 gallon fully drainable elliptical poly tank
  • Engine: 4-HP Honda
  • Pump: 2" Tsurumi aluminum
  • Frame: Heavy-duty 6" channel iron skid frame
  • Spray bar: Galvanized dual nozzle
  • Manifold: Galvanized
  • Suction hose: 20’
  • Options: Hose reel, fire hose kits, and spray accessories
  • Durable, heavy-duty construction for demanding jobsites
  • Reliable pump volume for dust control sprayer and fire support tasks
  • Fully drainable tank simplifies cleanout and winterizing
  • Targeted spraying from the dual-nozzle spray bar
  • Quick to load onto trucks and trailers as a skid mounted sprayer
  • Made in the USA with fast lead times on skid sprayers

Applications

Our skid mounted sprayer gives you flexible water delivery for a wide range of jobs where a water skid sprayer is preferred over a trailer.

Great for these applications:

  • Dust control sprayer for roads and construction sites
  • Remote landscape and tree watering
  • Road and site construction support
  • Fire protection and hot work support with a fire skid sprayer
  • Water transport to remote locations
  • Livestock and pasture watering

Cold Weather Options

For freeze protection for your skid sprayer or water trailer, our Water Trailer Heater Blankets help keep tanks and plumbing at a more consistent temperature. In cold conditions, this reduces the risk of freezing and helps keep your skid sprayer working through winter weather.

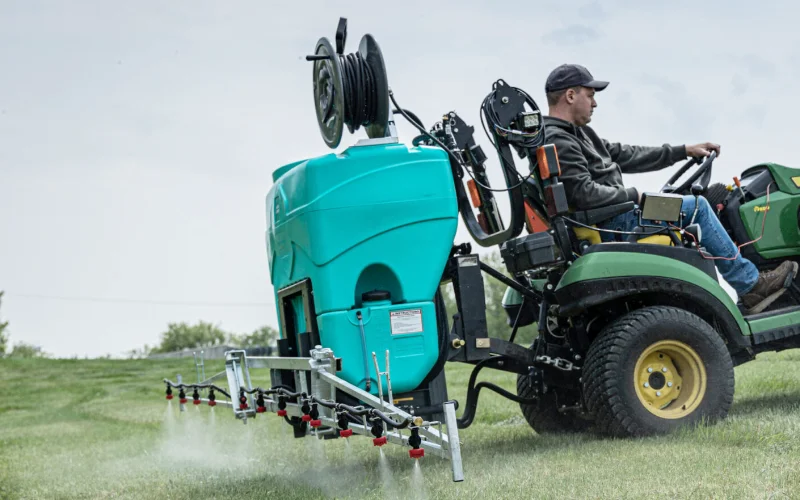

3 Point Hitch Sprayer (50, 100, 200 Gal.)

Overview

Available in 50, 100, and 200 gallon options, One Clarions 3 point sprayer is a compact tractor-mounted unit that connects to a CAT I 3 point hitch. These small acreage sprayers are ideal for food plots, small pastures, orchards, and fence lines where you need precise coverage without bringing in larger equipment. With boom and boomless options available, it fills the gap between a handheld sprayer and a large skid sprayer.


This tractor 3 point sprayer is designed for stability and even application of herbicides, fertilizers, and pesticides. Pair it with your compact or utility tractor to handle routine spraying chores efficiently around the farm, homestead, or municipal site. When you need a 3 point boom sprayer that is easy to operate and maintain, One Clarions 3 point sprayers are the practical choice.

Specifications

For more information on our 3 point sprayer models, including 100 and 200 gallon sizes, please contact a product specialist.

Features & Benefits

3 Point Sprayer Features 3 Point Sprayer Benefits
  • 50, 100, 200 gallon durable polyethylene tank
  • CAT I 3 point hitch mounting for compact tractors
  • Boom and boomless 3 point sprayer configurations
  • PTO-driven roller pump with high-pressure output
  • Built-in tank agitation for even chemical mixing
  • Compact footprint for small plots and narrow areas
  • Stable tractor mounted design for safe operation
  • Flexible spraying for rows, fence lines, and open ground
  • Even application of herbicides, fertilizers, and pesticides
  • Quick setup and straightforward operation for small acreage sprayer needs

Typical Applications

  • Food plot spraying and fertilization with a 3 point sprayer
  • Pasture weed management on small acreages
  • Fence line and perimeter care along property boundaries
  • Vineyard and orchard spraying where a tractor 3 point sprayer is preferred

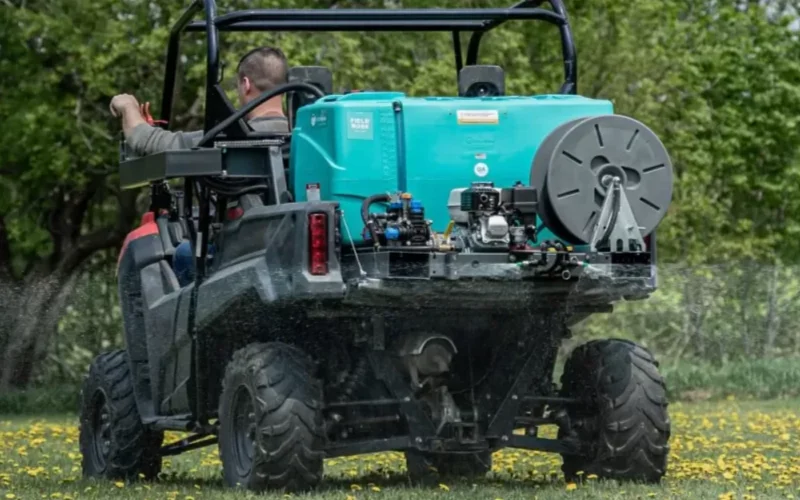

Field Boss® 365 UTV Skid Sprayer (60 & 100 Gal.)

Overview

The Field Boss® 365 is a UTV skid sprayer engineered for year-round spraying tasks. Built to match the toughness of your side by side sprayer platform, it combines a rugged frame, high-volume centrifugal pump, and optional boom systems to cover food plots, pastures, rights-of-way, and facility grounds efficiently. As a versatile UTV sprayer, it helps you reach areas that are tough for trucks or trailers.


With forkable points for easy loading and a user-friendly control layout, the Field Boss 365 gives maintenance crews and landowners a dependable UTV broadcast sprayer and UTV boom sprayer in one package. Use it for broadcast coverage, spot spraying, and fence line work where a compact UTV sprayer is more practical than a large skid mounted sprayer or ATV sprayer.

Specifications

60 Gallon Field Boss® 365
(with solenoid)		 100 Gallon Field Boss® 365
(with solenoid)
Maximum Capacity: 60 gallons Maximum Capacity: 100 gallons
Length: 48" Length: 48"
Width: 38" Width: 45"
Height: 23" Height: 27"
Motor: GX120 Honda, 4 HP Motor: GX120 Honda, 4 HP
Pump Type: Centrifugal Pump Type: Centrifugal
Flow Rate: 22.5 GPM Flow Rate: 22.5 GPM
Pressure: 50 PSI Pressure: 50 PSI
Hose Length: 50' Hose Length: 50'
Spray Distance (Vertical): 27' Spray Distance (Vertical): 27'
Spray Distance (Horizontal): 35' Spray Distance (Horizontal): 35'
Dry Weight: 185 lbs Dry Weight: 200 lbs

Features & Benefits

Field Boss® 365 Features Field Boss® 365 Benefits
  • UTV skid mounted sprayer design with forkable points
  • Rugged construction for year-round UTV sprayer use
  • Honda engine and centrifugal pump package
  • Optional solenoid controls and agitation
  • Compatible with boom and boomless UTV broadcast sprayer setups
  • Easy to load, secure, and deploy on most side by side sprayers
  • Designed to handle tough conditions and frequent use
  • High flow and consistent pressure for broad coverage
  • Configurable to match specific spraying requirements
  • Ideal for agriculture, facilities, and municipal UTV sprayer tasks

Typical Applications

  • Pasture and field spraying with a UTV sprayer
  • Right-of-way, roadside, and grounds maintenance
  • Food plots and large landscape areas
  • General facility and municipal spraying where a UTV skid sprayer is preferred

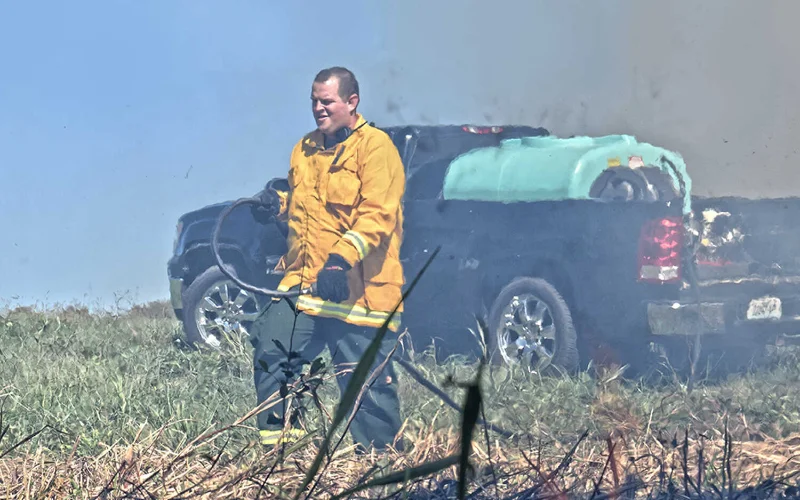

Fire Ranger Fire Skid Sprayers (250 & 400 Gal.)

Overview

Fire Ranger skid sprayers are truck-mounted fire skid units designed for fast response to grass, brush, and property fires in remote areas. Each fire skid sprayer mounts in the bed of a pickup and delivers high flow and pressure for rapid knockdown, hot-spot cooling, and exposure protection. When you need a wildland fire skid sprayer that can go where engines cannot, a Fire Ranger sprayer skid is a practical choice.


Built on a powder-coated steel skid frame with integrated forklift pockets and heavy-duty tie-down slots, these fire skid units are easy to load, secure, and operate. A reinforced poly tank, Honda engine, centrifugal pump, hose reel, and fire nozzle work together to provide dependable water delivery where hydrants and standpipes aren’t available.

Specifications

250 Gallon Fire Ranger 400 Gallon Fire Ranger
Maximum Capacity: 250 gallons Maximum Capacity: 400 gallons
Length: 80" Length: 102"
Width: 47" Width: 46"
Height: 38" Height: 45"
Motor: GX160 Honda, 5.5 HP Motor: GX160 Honda, 5.5 HP
Pump Type: Centrifugal Pump Type: Centrifugal
Flow Rate: 120 GPM Flow Rate: 120 GPM
Pressure: 100 PSI Pressure: 100 PSI
Hose Length: 100' Hose Length: 35'
Spray Distance (Vertical): 35' Spray Distance (Vertical): 35'
Spray Distance (Horizontal): 40' Spray Distance (Horizontal): 40'
Dry Weight: 458 lbs Dry Weight: 541 lbs

For complete Fire Ranger model and accessory information, contact our team or request the fire control skid sprayer spec sheet when you Sumbit a Quote.

Features & Benefits

Fire Ranger Features Fire Ranger Benefits
  • High-impact, reinforced poly tank
  • Honda engine with high-performance centrifugal pump
  • High-flow, high-pressure fire skid sprayer output
  • Poly-flex hose reel with fire hose and nozzle
  • Powder-coated steel skid frame
  • Integrated forklift pockets and tie-down slots
  • Rugged tank resists impact and rough fireground service
  • Reliable starting and dependable water output in emergencies
  • Delivers strong streams for fast grass and brush fire knockdown
  • Quick deployment and easy hose management
  • Stands up to outdoor, rural, and wildland conditions
  • Simple to load, position, and secure in pickup truck beds

Typical Applications

  • Grass and brush fire response with a wildland fire skid sprayer
  • Rural property, barn, and fence line fire protection
  • Livestock and pasture fire protection
  • Remote fire suppression where a truck-mounted fire skid unit is needed

Shipping & Delivery

  • Ships via LTL or dedicated truck depending on configuration and destination.
  • Typical lead times are fast for standard 500 gallon skid sprayers; ask for current in-stock availability.
  • Skids are shipped fully assembled and ready to place on your truck, trailer, UTV, or tractor platform.

Warranty

Manufacturer’s limited warranty applies to the tank, skid frame, and major components on each skid sprayer. Engine and pump carry their respective OEM warranties. Please contact us for complete warranty terms and coverage details.
