Aluminum Angle Berm

angle berm

Aluminum Angle Berms

Cost Effective Spill Containment

Aluminum angle berms are a containment solution best suited for extended or semi-permanent containment. When keeping hazardous liquids contained, choosing a spill containment berm for the correct location, price, and situation is what sets the sometimes-effective options apart from the always-reliable solutions.


A spill containment berm that lays flat, easily installs, and keeps spills maintained will best handle the storage and mitigation of hazardous materials leeching into a workspace or natural environment.


Our friendly staff is here to help you get the exact product you need!


Call us now! 1-863-261-8388
or Contact us for additional information.


For more information on our Aluminum Angle Berms, see our exclusive video below!

Aluminum Angle Spill Berms Help to Save Time and Money

Set up and tear down of aluminum angle berms make it a convenient, cost effective choice in spill containment. The easy-to-install spill containment barrier comes with standard features, additional materials, and benefits.


Depending on the liner used, aluminum angle spill berms can handle different materials. Standard liner fabric options for aluminum angle berms are: Copolymer-2000. Other materials available upon request.

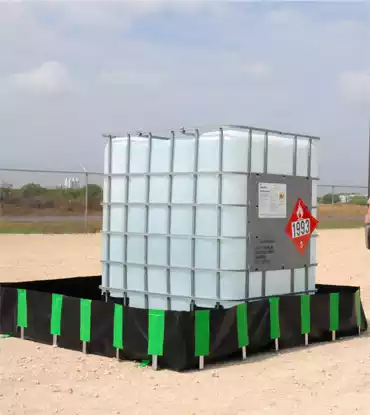

Spill containment barriers can also be customized with additional liner materials and weights for specific project needs. Aluminum angle berms can contain large objects or multiple small objects. Objects that need containing are frac tanks, paint drums, chemical containers, storage tanks, or 55-gallon drums.


Chemicals and different types of contaminated water, like frac water and chemical-based water, can all be contained by spill containment berms. The type of liquid or chemical being contained in the berm will depend on what specifications are made to it.


Aluminum Angle Berm Features

  • Made of PVC, LLDPE, Polyurethane, or Elvaloy fabric
  • Uses L-shaped aluminum 90 degree brackets to create a 1 foot barrier

Aluminum Angle Berm Benefits

  • Removable brackets
  • Vehicles can enter containment area

Aluminum Angle Berm Specifications

Part Number Dimensions ft. (m) Containment Capacity gal. (L) Weight lbs. (kg)/th>
Ultratech 8250 6 x 4 x 1 (1.8 x 1.2 x .3) 179 (677.6) 21 (9.5)
Ultratech 8251 6 x 6 x 1 (1.8 x 1.8 x .3) 269 (1018.3) 26 (11.8)
Ultratech 8252 10 x 10 x 1 (3 x 3 x .3) 748 (2831.5) 52 (23.6)
Ultratech 8270 20 x 10 x 1 (6.1 x 3 x .3) 1496 (5663) 88 (39.9)
Ultratech 8271 30 x 10 x 1 (9.1 x 3 x .3) 2244 (8494.5) 124 (56.2)
Ultratech 8272 40 x 10 x 1 (12.2 x 3 x .3) 2992 (11326) 160 (72.6)

Aluminum Angle Berm Accessories

  • Drains
  • Ground cloth or mats
  • Tread guards
  • Compression pads
  • Fittings

Having another layer of protection around your spill containment berm will make sure you are in complete compliance. Spill absorbents like pads, boom, and socks can clean up messes inside and outside secondary containment berms.


Other additional spill control products to have with your berm are:


  • Pillows
  • Rolls
  • Spill kits

Aluminum angle berms can safely contain:


  • Fuels like diesel and gasoline
  • Hydrocarbons and oil
  • Spills from machinery and work sites

Filling out a Material Safety Data Sheet (MSDS) can help determine what type of containment berm best meets your needs.

How to Install an Aluminum Angle Berm

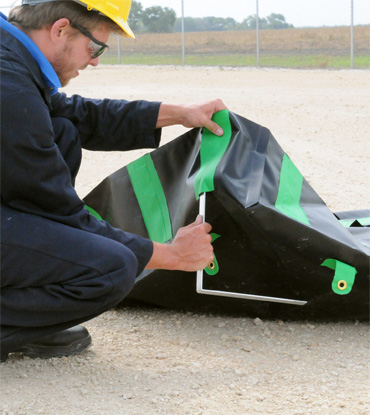

To set up your aluminum angle berm, first make sure it is flat on ground that is free of debris. Unfold it so it lies flat, but fold the sides in. The pockets for the aluminum angles should be showing. Remove the aluminum angles and place them alongside the matching pockets.


Slide aluminum angles into pockets, which are located on the walls of the berm. Do this so that the top portion of the angle fits in to the pocket, while the bottom sits underneath the berm. The 90 degree corner will be facing the berm wall.


Once the angles have been installed, the walls of the tank can be lifted to form the containment walls. Pull the sides of the berm out and smooth down the floor of the berm so that it is free from wrinkles.


Ultra Spill Containment Berm Downloads

Drive Through Spill Containment Berm Selection Guide (PDF)
Module Containment Wall Product Document (PDF)
Secondary Spill Containment Selection Guide (PDF)
Chemical Compatibility Guide (PDF)

Questions about our aluminum angle berms? Contact Us or call One Clarion at 863-261-8388 for more information.



Applications of Aluminum Angle Berms

Keeping in compliance in Building Maintenance Management means keeping spills in check when they should happen. Municipalities need secondary containment protection for facilities when performing routine maintenance on buildings or on construction sites. Keeping a building well maintained means containing chemicals, fuel tanks, and paint to avoid spills.


Other needs aluminum angle berms can handle:


  • Machinery fueling stations
  • Valve and leak control
  • Spill response

Storing liquids properly requires the right, cost effective equipment. Keeping in compliance will ensure Facility Protection and a community that is safe and protected.
