Haul, spray, and refill with confidence on the highway or on a remote job site. The tandem-axle frame is DOT compliant and carries a 1,600 gallon elliptical poly tank that resists corrosion and fully drains for quick clean-out. A Honda GX160 5.5 HP engine powers a 2 in. BANJO self-priming pump, delivering up to 140 GPM for fast fills and uniform spray coverage. Electric brakes, LED lighting, and an adjustable 2 5⁄16 in. ball or pintle hitch give you secure, road-ready control. Every trailer ships from U.S. facilities, backed by a five-year frame warranty and a three-year non-prorated tank warranty.

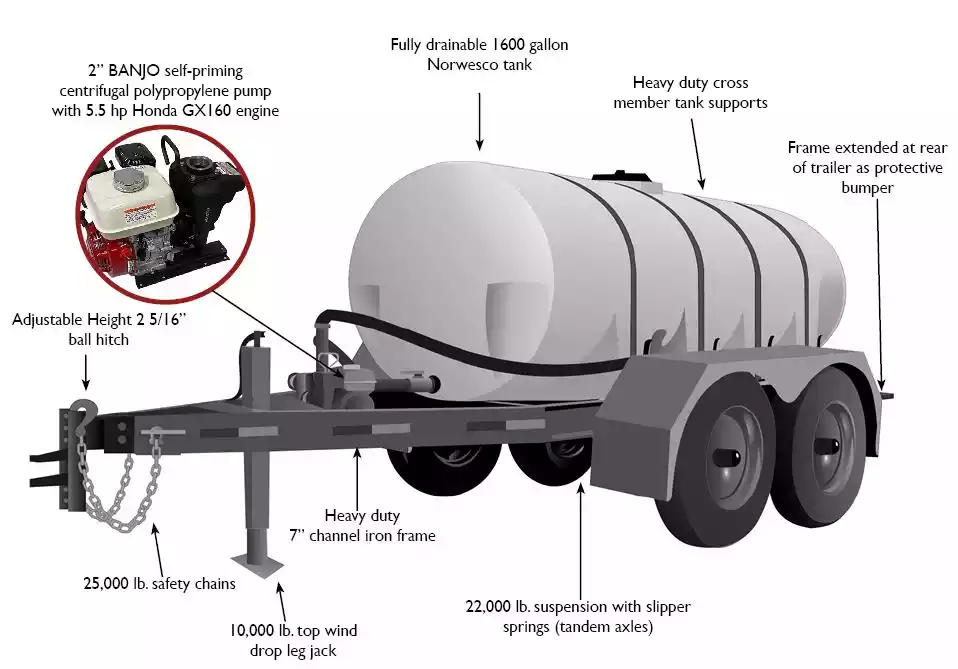

| Engine and Pump | 5.5 HP Honda engine GX160, with electric start and remote start (optional) 6.5 HP Briggs and Stratton gas engine upgrade option available 2” BANJO self-priming centrifugal polypropylene pump, max flow:195 GMP/45 PSI |
|---|---|
| Tank | 1600 gallon Norwesco tank Fully Drainable 3-year non-prorated warranty |
| Frame | Heavy duty 7” channel iron frame Heavy duty cross member tank supports Extended double plated reinforced tongue Pump and engine mounting space inside tongue for greater protection Step mounted to trailer for easy tank access 5 year trailer frame warranty Frame extended at rear of trailer as protective bumper |
| Suspension and Axle | Dual heavy-duty high-speed cambered axles Slipper leaf-spring suspension 22,000 lb rating Heavy-duty wheel bearings |
| Pump | 2" BANJO self-priming centrifugal polypropylene pump Max flow rate of 195 GMP/45 PSI (additional pump & engine options available) |
| Tires | Highway rated tires, 235/75R17.5 16 PLY tire with 8X6.5 Bolt Circle Wheel |
| Jack | 10,000 lb. top wind drop leg jack |
| Hitch | 25,000 lb. safety chains Standard: Height adjustable hitch with 2 5/16” ball coupler (20,000 lb, rating) Optional: Std. Clevis, 2” Ball Coupler, 3” Lunette eye |
| Filling Options | 2” BANJO full-port flange fittings Quick fill system with fire-hose adapter 2” PVC suction hose 20 feet long, with poly basket strainer for filling from open water sources Booms & spray bars Nozzles and more |
