Bracket Fuel Storage Tanks

Crane hoists vertical gray oil tank, workers steady base

UL 142 Oil & Fuel Storage

Fire-Rated Bracket & Saddle Tanks

Our fuel storage tanks pair heavy gauge steel with an integrated saddle or bracket base, creating a ready-to-install system for oil and fuel containment. The double wall construction supplies both primary and secondary containment in one footprint.


Built to UL 142 standards, these tanks range from 150 to 20,000 gallons and scale to meet the needs of fleets, farms, and municipal yards. Reinforced lifting lugs, threaded fittings, and a stable bracket base simplify handling, hookup, and long-term placement.


Looking for other bulk storage options? Please visit our Bulk Oil Storage Tanks page.

Bracket Tank Specifications

Capacity (Gal) Inner Tank Dimensions (in) Weight (lb) SW Weight (lb) DW Download Drawings
150 30 x 48 300 500 Drawing SW | Drawing DW
300 38 x 60 450 775 Drawing SW | Drawing DW
500 45.5 x 72 700 1100 NA | Drawing DW
550 48 x 72 750 1200 Drawing SW | Drawing DW
1000 45.5 x 144 1450 2050 Drawing SW | Drawing DW
1000 48 x 132 1450 2050 Drawing SW | Drawing DW
1100 48 x 144 1500 2150 Drawing SW | Drawing DW
2000 64 x 144 2200 3750 NA | Drawing DW

Saddle Tank Specifications

Capacity (Gal) Inner Tank Dimensions (in) Weight (lb) SW Weight (lb) DW Download Drawings
3000 64 x 216 3350 5200 Drawing SW | Drawing DW
4000 64 x 288 4027 6574 Drawing SW | Drawing DW
4000 96 x 132 5000 7600 Drawing SW | Drawing DW
6000 96 x 192 6625 10120 Drawing SW | Drawing DW
8000 96 x 256 8478 12450 Drawing SW | Drawing DW
10000 96 x 324 10250 14500 Drawing SW | Drawing DW
12000 96 x 384 11500 17000 Drawing SW | Drawing DW
15000 120 x 312 14000 22000 Drawing SW | Drawing DW
20000 120 x 408 17500 28000 Drawing SW | Drawing DW


Fuel Storage Tanks Details

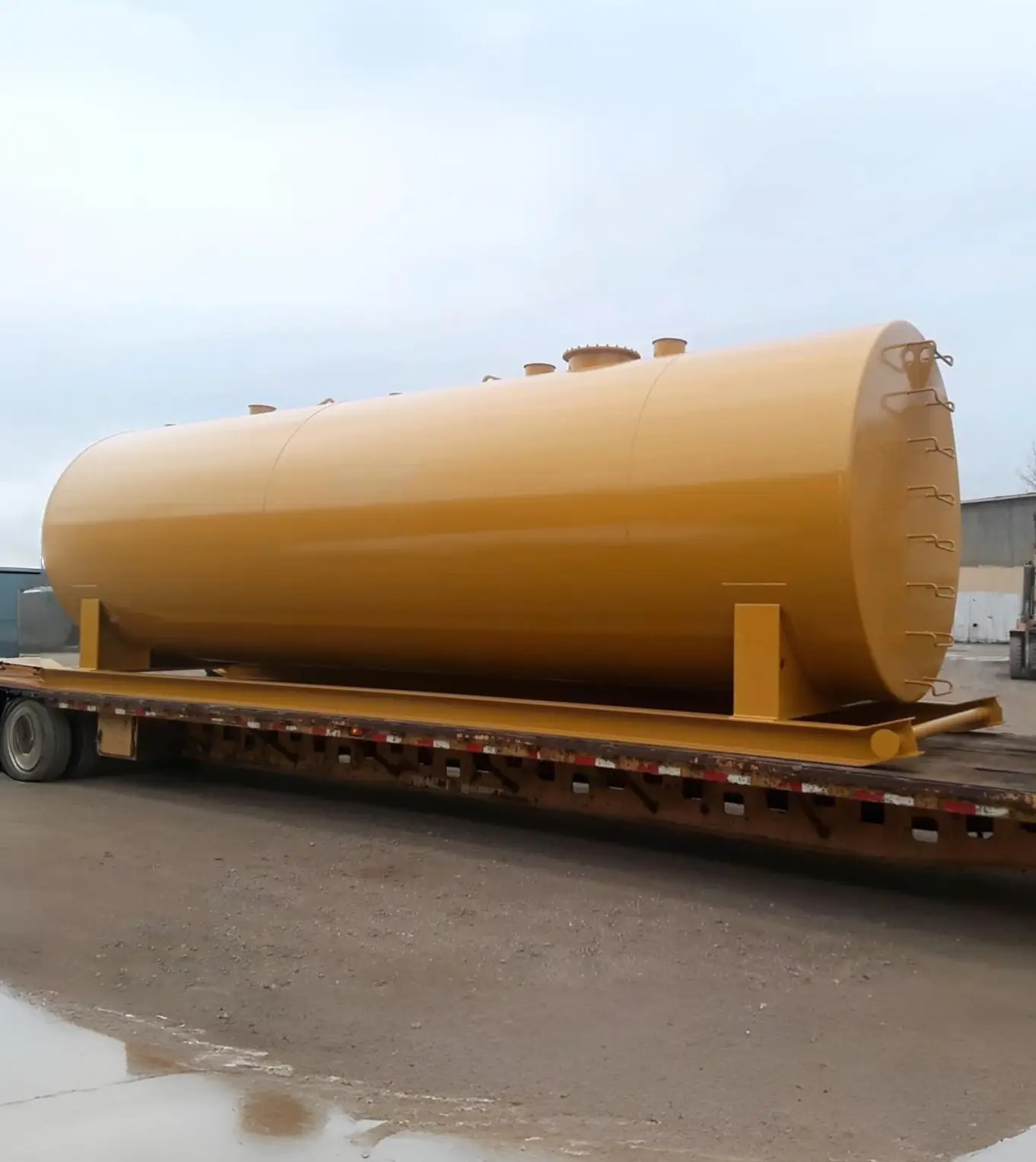

Bracket and saddle tanks are designed for above-ground use and meet UL 142 standards for storing flammable or combustible liquids. Bracket tanks support capacities up to 2,000 gallons and feature a raised steel frame for easier handling and forklift access. Saddle tanks use a low-profile cradle and are ideal for larger volumes up to 20,000 gallons.


Each single or double walled oil tank is factory-primed in gray for corrosion protection and can be finished with your preferred top coat. Whether you're looking for 500 gallon fuel tank containment or full-scale solutions for fleet yards, both bracket and saddle tanks deliver long-term performance with built-in secondary containment.


Fuel Storage Tanks Benefits

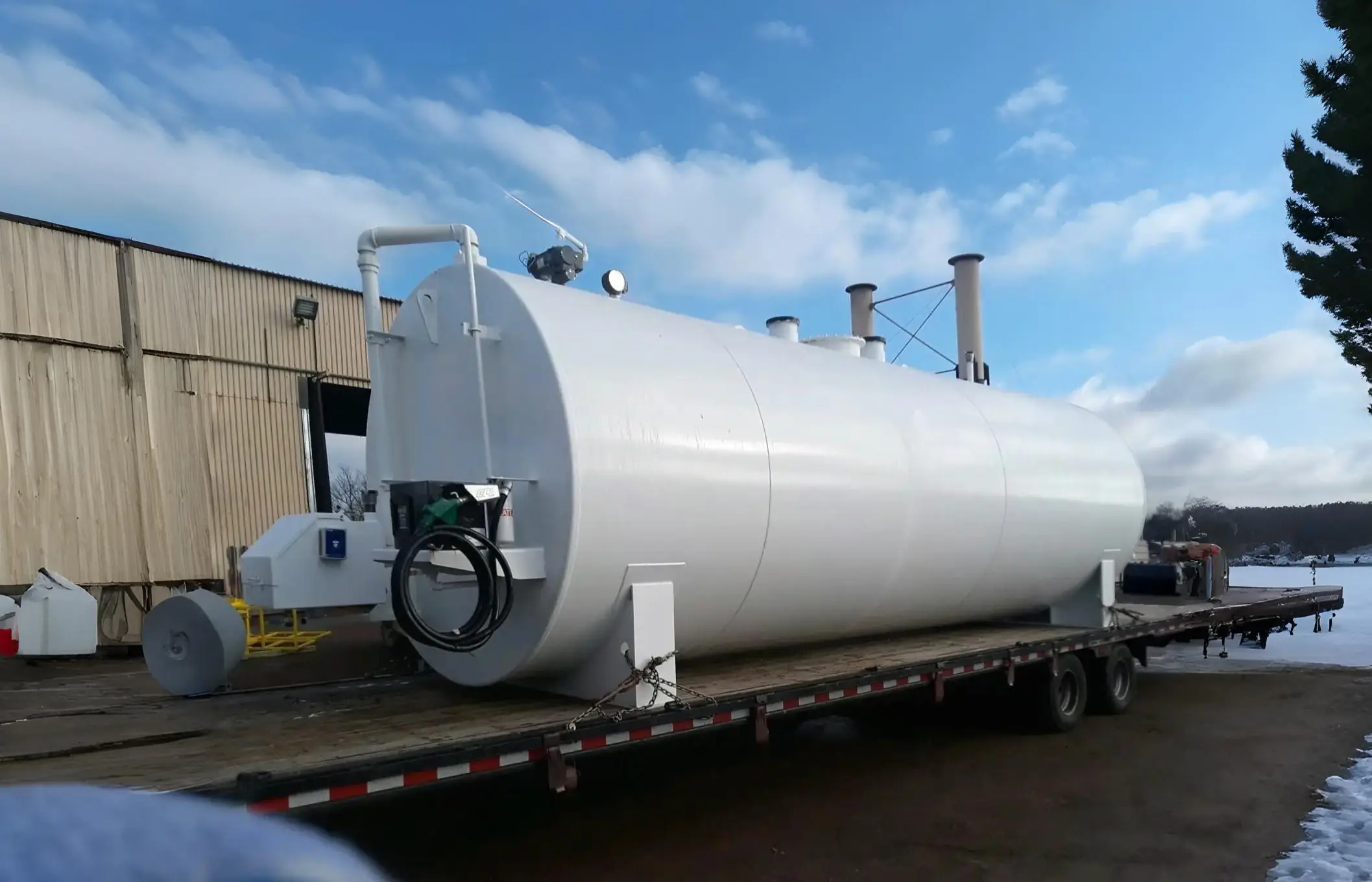

saddle oil tank on a trailer
  • Tank sizes ranging from 2,000 gal to 20,000 gal
  • UL 142 double-wall build provides built-in secondary containment
  • Lifting lugs and threaded ports speed setup and connection
  • On-site storage cuts delivery waits and lets you buy fuel in bulk

Fuel Storage Tanks Features


  • Double-wall steel shell in one compact footprint
  • Raised bracket base for small volumes and low saddle base for large volumes
  • Optional UL 2085 Fireguard insulation for added fire protection
  • Factory gray primer ready for any top-coat color

Fuel Storage Tanks Applications


Bracket and saddle fuel storage tanks are trusted across a range of industries that depend on bulk fuel access for daily operations, seasonal demands, or emergency readiness. Their above-ground design makes them easy to install and maintain, with flexible sizing to fit small job sites or large-scale facilities.


  • Fleet operations
  • Farms and ag co-ops
  • Construction sites
  • Emergency response teams
