UL 2085 fireguard tanks are double wall fuel storage tanks built for the safe containment of flammable and combustible liquid. These aboveground tanks meet UL 2085 standards for fire protection and impact resistance.
Ideal for diesel, gasoline, and other fuel types, they offer a secure, compliant solution for commercial, industrial, and municipal storage needs.

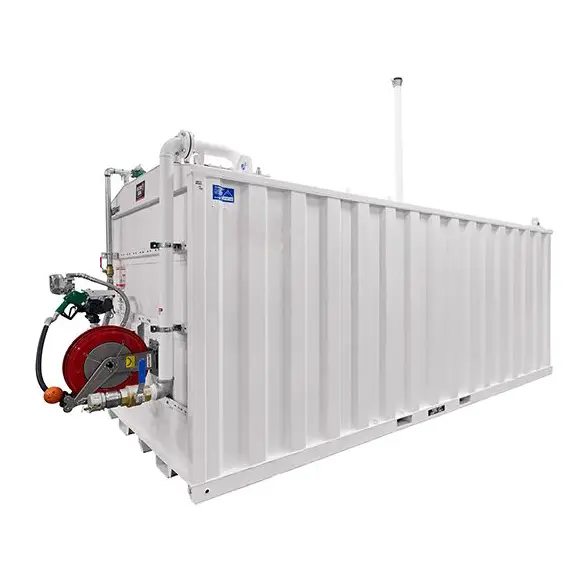

Looking for other bulk storage options? Please visit our Bulk Oil Storage Tanks page.
| Capacity (Gal) | Inner Tank Dimensions (in) | Weight (lb) | Download Drawing |
|---|---|---|---|
| 300 | 38 x 60 | 2700 | Drawing |
| 550 | 48 x 72 | 3350 | Drawing |
| 1000 | 48 x 132 | 4800 | Drawing |
| 2000 | 64 x 144 | 7800 | Drawing |
| 3000 | 64 x 216 | 10300 | Drawing |
| 4000 | 96 x 132 | 14647 | Drawing |
| 6000 | 96 x 192 | 19722 | Drawing |
| 8000 | 96 x 256 | 24022 | Drawing |
| 10000 | 96 x 324 | 29122 | Drawing |
| 12000 | 96 x 384 | 33422 | Drawing |
| 14000 | 96 x 456 | 40106 | Drawing |
| 15000 | 120 x 312 | 36800 | Drawing |
| 20000 | 120 x 408 | 45900 | Drawing |

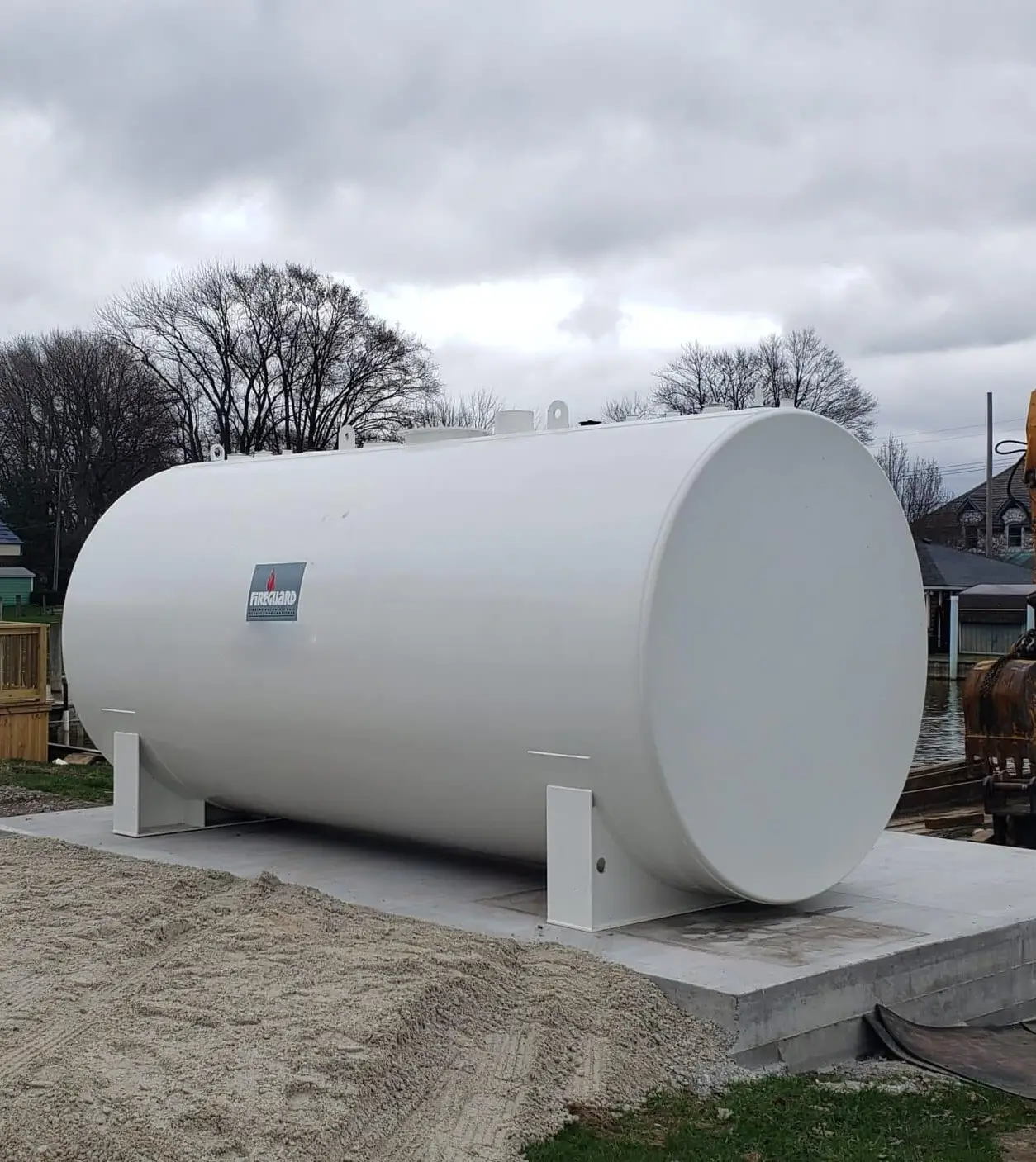

Fireguard tanks are constructed with a double wall steel design and an insulating concrete layer that enhances fire resistance and protects stored fuels from external hazards. The tanks include built-in interstitial monitoring to help detect leaks early and ensure safe aboveground operation.
Designed for long-term durability, these tanks meet UL 2085 standards and are commonly installed at fuel distribution yards, emergency backup systems, fleet operations, and other critical storage sites. Their rugged construction supports regulatory compliance while simplifying installation and maintenance.
These fire-rated, double wall fuel tanks are built for demanding field environments where safety and regulatory compliance are critical. Their rugged design and aboveground configuration make them ideal for a range of on-site fuel storage applications.
