Type 3 HD Turbidity Barrier

type 3 Heavy Duty turbidity curtain

Heavy Duty Silt Curtains for Fast Moving Waters

Strong Turbidity Curtain for Fast Moving Waters

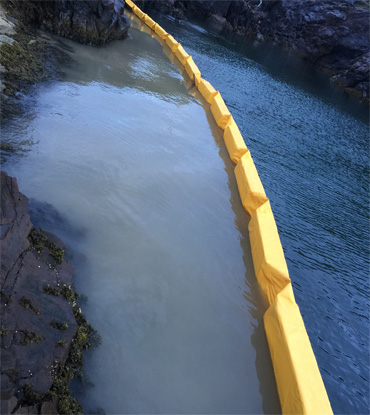

Type 3 Heavy Duty Turbidity Barrier is our strongest turbidity curtain, designed for fast moving waters and demanding conditions. Built to provide turbidity protection in strong water, waves, and wind, our heavy-duty silt curtains bring sediment control and increased strength to any containment or control area. To learn more about Type 3 Turbidity Curtains, Contact Us.


When installed as directed, Type 3 Heavy Duty Turbidity Curtains for moving waters provide sediment control and protection from turbidity caused by construction. Heavy duty silt curtains create a secure containment area for the sediment-laden water, forcing the sediment to settle back to the watershed's floor.

Our friendly staff is here to help you get the exact product you need!

Call us now! 1-863-261-8388
or Contact us for additional information.

Type 3 Heavy Duty Turbidity Barrier

Type 3 Heavy Duty Turbidity Barrier is designed to meet or exceed state DOT and federal requirements for sediment control in moving waters. These heavy-duty silt curtains are vital for specific jobsite specifications and have a variety of customization options. Built in the USA, you'll be pleased with this floating turbidity barrier's price, quality, performance, and turn-time. Using only rugged and reliable components, our standard options for Type 3 HD Turbidity Barrier are detailed below.


Questions about type 3 heavy duty turbidity barrier? We can help! Request a Quote or call One Clarion at 863-261-8388.


Type 3 Heavy Duty Turbidity Barrier Specifications

Curtain Panel Length Available in 50 ft. or 100 ft. Sections
Curtain Depth Standard is 5 ft. (3 ft. to 100 ft. Available Upon Request)
PVC Fabric Heavy Duty 22 oz. PVC Fabric With UV Protective Treatment
Color Yellow For High Visability (Other Colors Available Upon Request)
Flotation 12 in. Square, Foam-Filled, Enclosed Cell
Tension Cable Dual 5/16 in Tension Cables
Bottom Ballast Chain 3/8 in Galvanized Steel Chain
Connectors Reinforced Grommets and Universal Bulk Slide Connectors
Anchor Points Recommended at 50 ft Intervals*

*Significantly reduce the load on your curtain and increase the curtain's field-use life by having the right anchor type, pattern, and installation design. Our experts can help you determine the anchor pattern and placement needed to support the sediment control compliance requirements for your job site.


Interested in pricing for our heavy duty silt curtains? We can help!



Type 3 Heavy Duty Turbidity Barrier Accessories

Let us make it easy for you. We can provide all the components needed for your heavy duty silt curtains project and have it delivered ready for installation in just one shipment.


Type 3 Heavy Duty Turbidity Barrier accessory components include:

  • Tow Bridles – Use a tow bridle for turbidity curtain installation to help prevent unnecessary stress tears and damage that can occur when locating (or relocating) turbidity curtain.
  • Anchor Kits – These pre-assembled anchor kits provide a convenient solution to stabilizing and controlling the turbidity barrier and are quick to install. Kit components are also available separately.
  • Floating Marker Lights – Often a requirement for projects on waterways with significant boater traffic, floating marker lights meet safety requirements by providing nighttime demarcation of the construction zone.
  • Reefing Lines – Installing turbidity curtain across different water depths is a breeze with reefing lines. This handy feature lets you adjust the depth of each panel by simply raising or lowering the lines. Note: Best practice is to leave a clearance of 1 foot between the base of the turbidity curtain and the water body's floor.
  • Tidal Compensators – For use in areas with fluctuations in the water depth on the shore, such as tidal areas. Save yourself time in manually adjusting the curtain after storm events or tidal changes. The tidal compensator will take care of it for you, automatically adjusting with changes in water levels to keep the curtain secure and at the proper depth in the water. A Heavy Duty Model is also available to particularly rough conditions.

For additional information, please see our Turbidity Barrier Accessories.


Buy Turbidity Curtain in Bulk

For a turbidity curtain cost that fits within your budget, buy in bulk! Our heavy duty silt curtains prices and performance are excellent, without sacrificing quality. Type 3 Heavy Duty Turbidity Curtain provides the proven results you're looking for, at a price that will fit nicely into your project's budget.


Other Floating Turbidity Barrier Choices


Still have questions? We can help you. We know the right solutions for sediment control at your site. Our turbidity curtain experts are available to answer your questions and provide you with availability and pricing.



Because Type 3 turbidity curtain is designed for fast moving water, there are anchoring and deployment components necessary for proper installation. Browse our selection of Marine Accessories to find the right equipment for your curtain.



For more information on turbidity barriers, Contact Us or call 863-261-8388 to speak with a specialist.
