Industrial-Grade Tanks for Wastewater Management

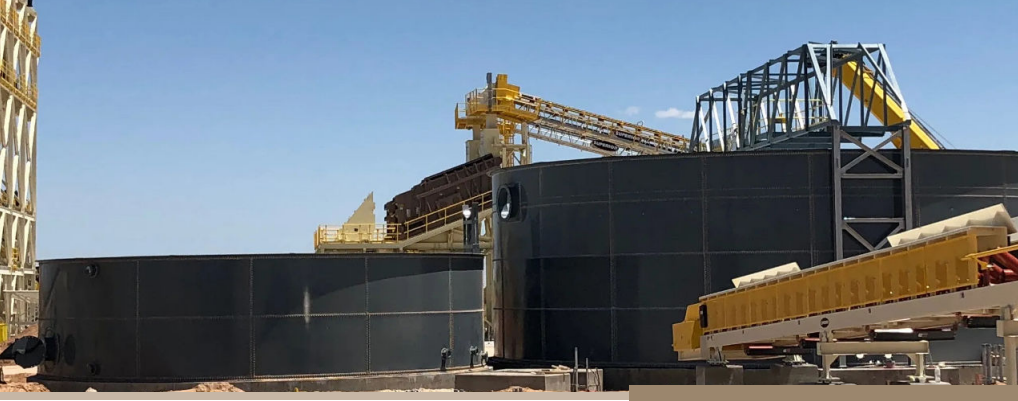

Industrial wastewater tanks are above-ground vessels used to hold, equalize, or stage industrial wastewater before treatment, discharge, or hauling. Exceeding EPA/AWWA requirements these tanks are an essential part of an industrial water treatment process, helping facilities manage variable flows, protect downstream systems, and maintain environmental compliance. Constructed from our bolted flat panel design , each tank is sized to fit your flow rate, chemical makeup, and site requirements. As part of a complete industrial water treatment solution, these tanks integrate with pretreatment, neutralization, and filtration systems to support safe, reliable plant operation.

Who Uses Industrial Wastewater Tanks?

Environmental & Process Engineers

At mid-to-large manufacturers including food & beverage, chemical, metal finishing, and power generation facilities. These professionals specify capacity, materials, and controls to meet permits and ensure consistent compliance with discharge regulations.

Facilities & Maintenance Managers

At small-to-mid plants and logistics sites who need durable, quick-ship tanks to consolidate waste and reduce hauling costs. They value reliability, ease of maintenance, and solutions that minimize operational disruption.

EPC & Consulting Firms

Design-build partners who integrate storage and equalization into new or retrofit projects. They require stamped drawings, schedule certainty, and technical support to ensure seamless project execution.

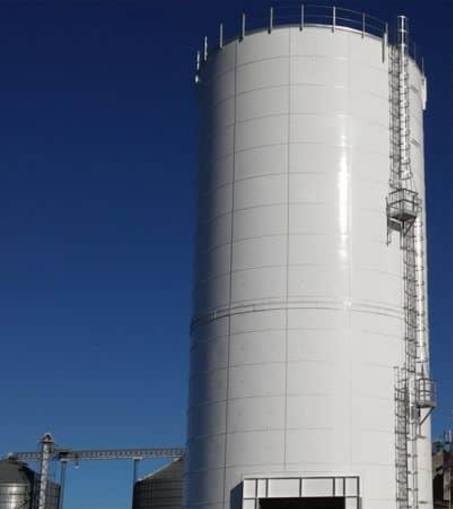

Industrial wastewater tank at a wastewater plant

Specifications

Capacity Quick Reference (AST 116" Sheets, No Starter)

Selected diameters and heights with U.S. gallons. Full chart available on request.

Diameter	Height (1 Ring)	Gallons (1 Ring)	Gallons (5 Rings)	Gallons (9 Rings)	Gallons (13 Rings)
~9' 2-3/4"	~5' 3-1/4"	2,138	11,818	21,497	31,177
~12' 3-3/4"	~10' 1-1/4"	3,801	21,009	38,218	55,426
~15' 4-5/8"	~14' 11-1/4"	5,940	32,827	59,715	86,603
~18' 5-1/2"	~19' 9-1/4"	8,553	47,271	85,990	124,708
~21' 6-1/2"	~24' 7-1/4"	11,642	64,341	117,041	169,741
~24' 7-3/8"	~29' 5-1/4"	15,205	84,038	152,870	221,703

At very large diameters (126'–153'), capacity spans from 399,380 gal at the minimum height shown to 3,954,920 gal at the tallest configuration shown in the chart.

Applications

Equalization (EQ) & Surge

Smooth daily peaks and protect downstream treatment. Typical: 10,000–30,000 gal, duplex or triplex trains.
Pretreatment & pH Neutralization

Batch/hold prior to neutralization or chemical dosing. FRP/HDPE preferred for acids/caustics; lined steel for elevated temps.
Oily Water / Separator Skim

Hold separator effluent or skim liquids before handling. Add flame arrestor vents and spill containment as needed.
Washdown & CIP Water

Capture sanitation and equipment wash flows for timed release or treatment. Popular: 5,000–15,000 gal HDPE/FRP.
Storm Bypass / Turnaround Storage

Temporary capacity during outages or maintenance. Pair with rental-ready fittings and cam-lock manifolds.
Sludge / Clarifier Overflow

Manage solids-bearing streams using lined steel or heavy-wall FRP with cleanouts, mixers, and sloped floors.
