Mirafi® Non Woven Geotextile

mirafi n geotextile fabric

Mirafi Non Woven Geotextile

Soil Separator Fabric

Mirafi® N-Series nonwoven geotextile is the perfect solution for soil separation, filtration, and drainage applications. Our soil separator fabric, with its exceptional permittivity properties, provides higher water flow rates and excellent soil retention. Mirafi® filter fabric is primarily used for subsurface drainage along highways, within embankments, under airfields, and for athletic fields. This geotextile soil separator provides a properly designed protective filter to ensure superior drainage structures. Mirafi® N-Series provides excellent strength and abrasion resistance to withstand installation and application stresses, giving you an effective, long-term drainage solution. To find out more about our nonwoven geotextile fabric, talk with one of our knowledgeable staff.

Our friendly staff is here to help you get the exact product you need!


Call us now! 1-863-261-8388
or Contact us for additional information.

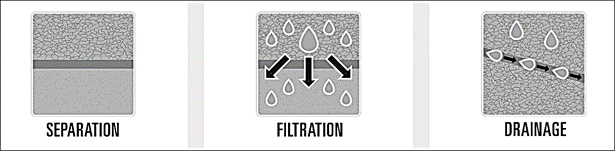

Mirafi Non Woven Fabric Functions


Infographic showcasing the mirafi non-woven fabric functions

Soil Separator Fabric


Mirafi® N-Series polypropylene nonwoven geotextiles are constructed to easily conform to ground or trench surfaces, ensuring a problem free installation. The high flow through rate makes geotextile drainage fabric the perfect solution for soil separation, drainage and filtration applications. Mirafi® geotextiles eliminate the difficulty of determining the aggregate gradation required to match soil conditions, assuring your constructed in-place drainage system will provide effective filter performance.


Soil Separator Fabric Features


  • Polypropylene Nonwoven Geotextile Fabric
  • Heavyweight, Durable Construction and Design
  • Withstand Installation Stresses
  • Strength and Abrasion Resistant
  • Resistant to Tears and Punctures

Soil Separator Fabric Benefits


  • Conforms to Ground or Trench Surface
  • Soil Separation, Filtration and Drainage Applications
  • Effective Filter Performance
  • Chemically Stable in Aggressive Environment
  • Cost Effective Alternative to Graded Aggregate Filters

Soil Separator Fabric Specifications


MECHANICAL PROPERTIES TEST METHOD UNIT 140NL 140NC 140N 160N 170N 180N 1100N 1120N 1160N
Grab Tensile Strength: MINIMUM AVERAGE ROLL VALUE
Strength ASTM D4632 lbs (N) 90 (401) 100 (445) 120 (534) 160 (712) 180 (801) 205 (912) 250 (1113) 300 (1335) 380 (1691)
Elongation ASTM D4632 % 50 50 50 50 50 50 50 50 50
Trapezoid Tear Strength ASTM D4533 lbs (N) 40 (178) 45 (200) 50 (223) 60 (267) 75 (334) 80 (356) 100 (445) 115 (512) 140 (623)
CBR Puncture Strength ASTM D6241 lbs (N) 250 (1113) 250 (1113) 310 (1380) 410 (1825) 450 (2003) 500 (2224) 700 (3115) 800 (3560) 1025 (4561)
HYDRAULIC PROPERTIES
MAXIMUM OPENING SIZE
Apparent Opening Size ASTM D4751 US Sieve (mm) 50 (0.30) 70 (0.212) 70 (0.212) 70 (0.212) 70 (0.212) 80 (0.18) 100 (0.15) 100 (0.15) 100 (0.15)
MINIMUM ROLL VALUE
Permittivity ASTM D4491 sec-1 2.0 2.0 1.7 1.5 1.4 1.4 0.8 0.8 0.7
Flow Rate ASTM D4491 gal/min/ft2
(l/min/m2)sec-1		 145 (5907) 2.0 140 (5704) 135 (5500) 110 (4481) 105 (4278) 95 (3870) 75 (3056) 65 (2648) 50 (2037)
MINIMUM TEST VALUE
UV Resistance After 500 hrs ASTM D4355 % strength 70 70 70 70 70 70 70 70 70
PACKAGING UNIT 140NL 140NC 140N 160N 170N 180N 1100N 1120N 1160N
Roll Width - ft (m) 12.5 (3.8)
15.0 (4.57)		 12.5 (3.8)
15.0 (4.57)		 12.5 (3.8)
15.0 (4.57)		 12.5 (3.8)
15.0 (4.57)		 12.5 (3.8)
15.0 (4.57)		 12.5 (3.8)
15.0 (4.57) 170		 15.0 (4.57) 15.0 (4.57) 15.0 (4.57)
Roll Length - ft (m) 360 (110) 360 (110) 360 (110) 300 (91.4)
360 (110)		 12.5 (3.8)
15.0 (4.57)		 360 (110)
300 (91.4)		 300 (91.4) 300 (91.4) 150 (46)
Roll Area - yd2 (m2) 500 (418)
600 (502)		 500 (418)
600 (502)		 500 (418)
600 (502)		 500 (418)
600 (502)		 500 (418)
600 (502)		 500 (418)
600 (502))		 500 (418) 500 (418) 250 (209)

Soil Separator Fabric Applications


Mirafi® geo fabric is primarily used for subsurface drainage along highways, within embankments, under airfields, and for athletic fields. This nonwoven geotextile provides the necessary strength and abrasion resistance to withstand installation and application stresses, creating an effective, long-term drainage solution. These heavyweight, nonwoven fabrics are effective in critical subsurface drainage systems, permanent erosion control, soil separation, and geo-membrane liner protection in landfills. Other uses for soil separator fabric are: cut-off/interceptor drains along rode ways, liner protection within landfills, and French Drains without the use of pipes. Call one of our specialist today for help with your Mirafi® nonwoven fabric specifications and applications. For more information on Mirafi nonwoven geotextile solutions, please see: Mirafi Nonwoven Geotextile Fabrics or check our Mirafi Non-Woven Getoxtiles (pdf).


Need more information on our other biodegradable erosion control solutions? See our Erosion Control Line Card.



Ready to find out more about our nonwoven geo fabric for your landscaping and drainage applications? Call us  today:

1-863-261-8388.
