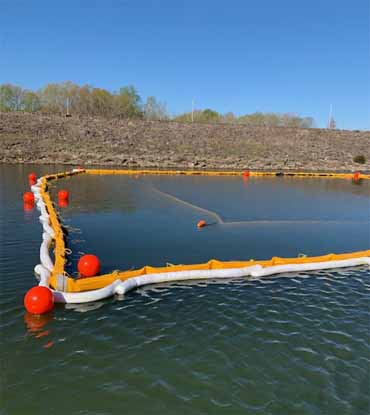

Type 2 DOT Turbidity Curtain

Type 2 DOT Turbidity Curtain Technical Specifications

Curtain Panel Length	Available in 50 ft. or 100 ft. Sections
Curtain Depth	Standard is 5 ft., Other Sizes (3 ft. to 20 ft.) Available
Fabric	18 oz. PVC, UV-Protective Treatment
Color	Yellow, For High Visibility
Flotation	6 in. or 8 in. Square Foam Filled Floats
Tension Cable	5/16 in. Tension Cable (Below Float)
Bottom Ballast Chain	5/16 in. Galvanized Chain
Connectors	Grommets, Top and Bottom Stress Plates With Shackle Connectors For Support
Anchor Points	Generally Recommended At Each 50 ft. Interval*

*Our experts can help you determine the anchor pattern and placement needed to support Department of Transportation compliance requirements for your job site.

Note: The components listed above are recommended for fresh-water applications or project sites where the floating turbidity barrier will be in use no longer than 12 months. For salt-water environments, the components recommended are: stainless steel cable, zinc anode connectors, and stainless steel chain.

Additionally, having the right anchor pattern, installation design, and anchor type can significantly reduce the curtain loads, increasing the field-use-life and performance effectiveness of the turbidity curtain.

Other important components include curtain chain connectors, tension cable for turbidity curtain, and turbidity curtain weights chain. For Type 2 Turbidity Curtain, proper installation and maintenance matters. Our sales team can help you determine what turbidity curtain components you need.

Still unsure or need assistance? We are available to answer your questions and provide you with a competitive turbidity curtain price.

When dealing with moving water, including waves and currents, anchoring your curtain correctly is the most important part of turbidity control. An improperly anchored turbidity barrier will fail. Choosing the proper accessories can make or break your project's success. Just a few of the necessary components are:

• Anchor Kits
• Tow Bridles
• Reefing Lines
• Buoys
• Marker Lights
• Tidal Compensators

See more information about accessories for the Type 2 DOT turbidity curtain on our Marine Accessories.

We also offer a wide variety of other turbidity curtain options. For additional Type 2 Turbidity Curtain choices (including Contractor, Heavy Duty, and Permeable curtains), please see: Type 2 Turbidity Curtain Options. For a full listing of all turbidity barriers, please see: Turbidity Barrier Product line.

If you're unsure of which type of floating silt barrier is needed for a job site's requirements, please review these helpful guides:

• Turbidity Curtain Installation Instructions(PDF)
• Turbidity Curtain Selection Guide
