1,600 Gallon Water Trailer

1600 gallon water hauling trailer

1,600 Gallon Water Trailer

Water Hauling Trailers

The 1,600 gallon water trailer is our largest, sturdiest towable portable water tanks trailer. The water hauling trailer provides more support than those of our 550 gallon water trailer and 1000 gallon water trailer models. A more powerful engine provides more horsepower to keep water and other liquids flowing.

Because the trailer is DOT-compliant, the 1,600 gallon water trailer with pump can be used to transport large amounts of water to rural areas for a variety of applications. The ruggedness and large capacity of our towable water tank makes it ideal for hauling water across a spread out area. Having a water transport trailer with this capacity will allow you to successfully transport water for a variety of applications.

Our friendly staff is here to help you get the exact product you need!

1,600 Gallon Water Tank Trailer Specifications

Download the 1600 Gallon Water Trailer (PDF) for more specifications and details.

Tank Style	1,600 Gallon Polyethylene Round Leg Tank (1,625 Gallon Total Capacity)
Tank Color	Translucent White (Other Colors Available)
Frame	6" Channel Iron w/ 3" Channel Crossmembers, 16" on Center
Axles	8,000 lb. Electric Break Axle; Slipper Spring Suspension
Brakes	Electric
Lighting	DOT-Compliant LED Lights, Wiring, and Connectors
Engine	5.5 HP Honda Engine
Pump	2" Honda Pump
Tires	16" on 8 Lug Silver Radials
GVWR Capacity	20,000 lbs.
Length	16' (Not Including Tongue)
Width	82" Between Fenders, 101" Total Width
Height	26" Deck Height, 89" Total Height
Hitch	Flat-nosed Adjustable Nose Plate with 2-5/16" Ball with Pintle Ring Coupler; 5/16" Heavy Duty Safety Chain
Jack	12,000 lb. Drop Foot Jack
Fenders	Steel Diamond Tread with Access Steps
Trailer Finish	Primed 2-Coat Black Enamel

Water Tank and Trailer Applications

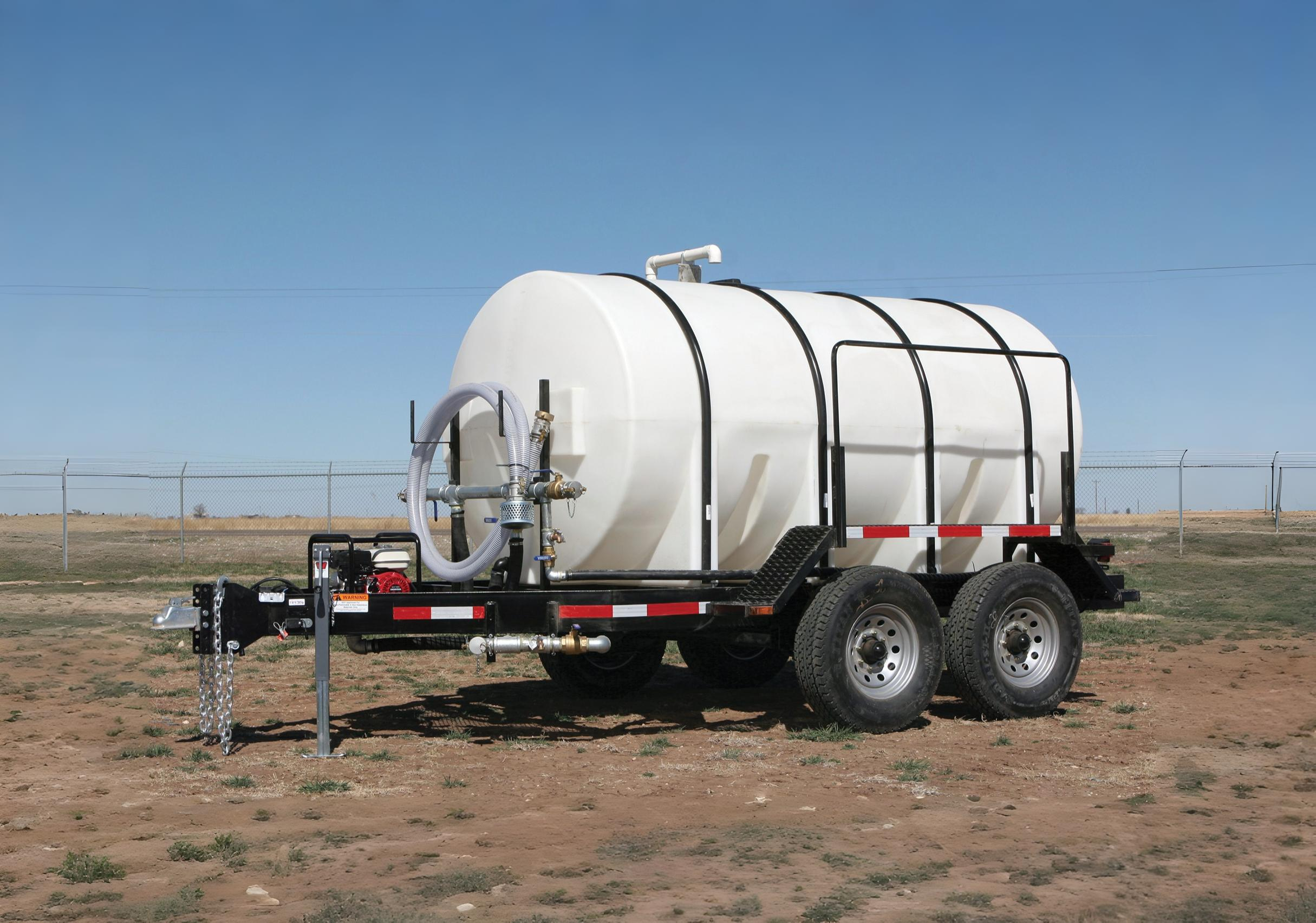

front of 1,600 gallon water tank trailer

Bulk Water Transport – Multiple departments in a municipality need bulk water transport. Whether transporting water for irrigation in communal gardens or taking water to rural areas without connections to the city system, DOT-compliant water hauling trailers from Clarion Municipal will smoothly make the trip.

Large-Scale Watering – As our largest tank and trailer system, the 1,600 gallon water transport trailer model can provide adequate coverage when watering greenery in large public parks. The water hauling trailer easily attaches to city trucks already on site for a smooth spray. For trees and landscaped areas hard to reach on wheels, the 25 foot hose attachment is easily maneuvered into place.

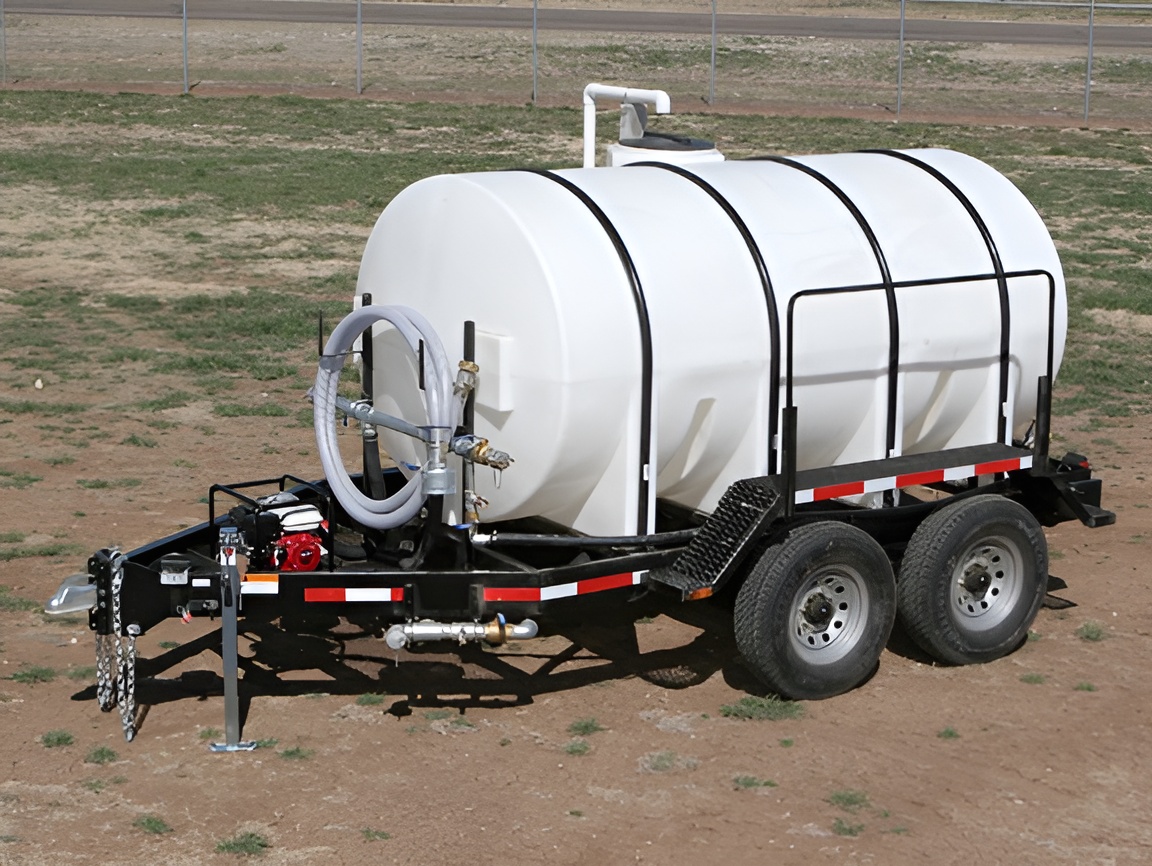

side of the 1,600 gallon water tank trailer

Fire Suppression – Small towns don't always have immediate access to firefighting equipment, relying on neighboring towns or county services. The Emergency Management department can keep a water trailer with pump available for small brush fires or emergency events that occur when the usual help is too far away.

Request a Quote or call us at 863-261-8388 for pricing on our water tank and portable water trailer systems.

Our Custom Tank Blanket Heaters are exactly what you need for tank freeze protection. When cold weather affects the viscosity of fuel, fluids, and other materials you can lose production time, adding additional costs. Power blankets keep your tanks and smaller corrugated/steel tanks at constant temperature, preventing fluids from freezing in extreme conditions. We customize thermal blankets to meet your specific needs, no matter the tank size or shape. Call us today to find out more!

For freeze protection for your water trailer or skid, our Water Trailer Heater Blankets are exactly what you need . When cold weather affects the viscosity of fuel, fluids, and other materials you can lose production time, adding additional costs. Power blankets keep your tanks and smaller corrugated/steel tanks at constant temperature, preventing fluids from freezing in extreme conditions. We customize thermal blankets to meet your specific needs, no matter the tank size or shape. Call us today to find out more!

For additional water wagon sizes and options, such as 2000 gallon capacities or greater, visit our water trailer website: One Clarion Water Trailer Website.
